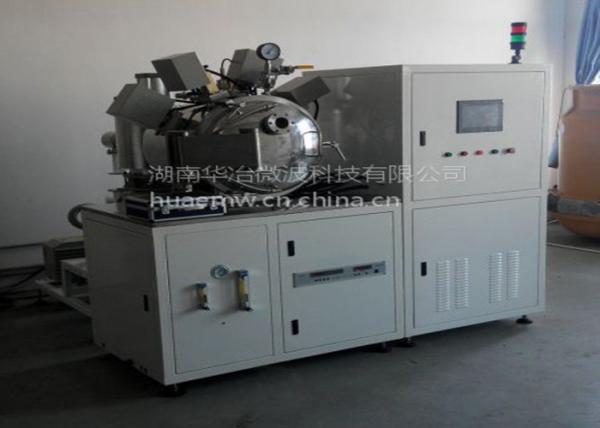

Pre Treatment Chamber Atmosphere Furnace Industrial Microwave High Vacuum System

Name: Pre Treatment Chamber Atmosphere Furnace Industrial Microwave High Vacuum System
Brand: Huaemw
Price: 1 USD

Brand Name : Huaemw

Model Number : HY-ZK3016

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Delivery Time : 1~12weeks

Name : High vacuum Furnace / lab vacuum furnace

Heating Source : Microwave

Voltage : AC 380V

Temperature Control Precision : ±0.1%

Temperature Measurement Method : infrared thermometer

Static Ultimate Vacuum Degree : ≤10-3Pa

Contact Now

Industrial Microwave High Vacuum System Pre Treatment Chamber Atmosphere Furnace

Product Features

Vacuum sintering can reduce oxidization of sample materials while subsequently improved coalescence between individual particles, which shall significantly improve mechanical properties of end product.
Industrial microwave furnace HY-ZK3016 is capable of continuously maintaining high vacuum degree, which is especially suitable for synthesis or sintering process requiring for high vacuum environment.

HY-ZK3016 can reach high vacuum degree of 10^-3Pa.

HY-ZK3016 is equiped with high precision cooling water machine with rated cooling capacity of 5.2kW.

Applications

HY-ZK3016 can be applied to pre thermal treatment of metal materials required for high vacuum and protective atmosphere.

Technical Parameters

Parameters		HY-ZK3016
Power	Voltage	380±10V 50Hz three-phase
Power	Rated Power	9KW
MicrowaveSystem	Microwave Output Power	0.10~2.80KW continuously adjustable
	Microwave Frequency	2.45GHz
	Microwave Leakage Prevention	microwave leakage intensity<2mW/cm²
Thermal Insulation System	T_max	1600°C in atmosphere, 1500°C in vacuum
	Working Temperature	1550°C in atmosphere, 1450°C in vacuum
	Heating Space (D×H)	Φ120×100mm
Temperature Control System	Temperature Measurement Method	infrared thermometer
	Temperature Measurement Range	300~1800°C
	Temperature Control Precision	±0.1%
ControlSystem	Auto, Manual and Isothermal Controlling Mode, PLC+Touch Screen	40 segments of programmable technical parameters, data storage and export, real-time curve data display, dynamic data display
Atmosphere System	2 Circuits to Control Atmosphere	capalble of oxidizing gas, inert gas, weak reducing gas etc.
Atmosphere System	Rotary Sealing	magnetic fluid, 4~6rmp
