Vacuum Sintering Stainless Steel Fast Vacuum Pumping Gold Smelting Furnace

Name: Vacuum Sintering Stainless Steel Fast Vacuum Pumping Gold Smelting Furnace
Brand: Huaemw
Price: 1 USD

Brand Name : Huaemw

Model Number : HY-ZK6016

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Delivery Time : 1~12weeks

Heating Source : Microwave

Working Temperature : 1550°C in atmosphere,1450°C in vacuum

Temperature Measurement Method : infrared thermometer

Static Ultimate Vacuum Degree : ≤10-3Pa

name : High Vacuum Furnace

Country of origin : china

Contact Now

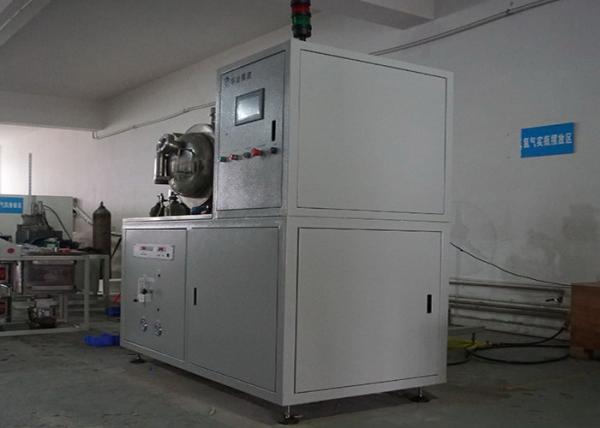

White Vacuum Furnace 304 / 316 Stainless Steel Fast Vacuum Pumping 10^-3 Pascal

Product Features

HY-ZK6016 is capable of fast vacuum pumping and can reach vacuum degree less than 10^-3 Pascal, which is especially suitable for synthesis or sintering process requiring for high vacuum condition.

HY-ZK6016 utilizes 304 / 316 Stainless Steel to build the furnace chamber and microwave leakage intensity is less than 2 mW/cm².

Overall Dimension of HY-ZK6016 is ca. 2100×2200×2000mm (including rack and electric control cabinet).

Applications

HY-ZK6016 has a robust construction and offers rapid and highly consistent heating procress in controlled atmosphere, which is suitable or numerous heavy duty industrial and laboratory applications.

Technical Parameters

Parameters		HY-ZK6016
Power	Voltage	380±10V 50Hz three-phase
Power	Rated Power	15KW
Microwave System	Microwave Output Power	0.10~5.60KW continuously adjustable
	Microwave Frequency	2.45GHz
	Microwave Leakage Prevention	microwave leakage intensity <2mW/cm²
Thermal Insulation System	T_max	1600°C in atmosphere, 1500°C in vacuum
	Working Temperature	1550°C in atmosphere, 1450°C in vacuum
	Heating Space (D×H)	Φ180×150mm
Temperature Control System	Temperature Measurement Method	infrared thermometer
	Temperature Measurement Range	300~1800°C
	Temperature Control Precision	±0.1%
Control System	Auto, Manual and Isothermal Controlling Mode, PLC+Touch Screen	40 segments of programmable technical parameters, data storage and export, real-time curve data display, dynamic data display
Atmosphere system	Static Ultimate Vacuum Degree	≤10^-3Pa
	2 Circuits to Control Atmosphere	capalble of oxidizing gas, inert gas, weak reducing gas etc. continuously maintain high vacuum degree
	Rotary Sealing	magnetic fluid, 4~6rmp
Cooling System	High Precision Cooling-Water Machine	flow rate of 2m³/h, rated cooling capacity of 5.2KW
	Furnace Body(L×W×H)
