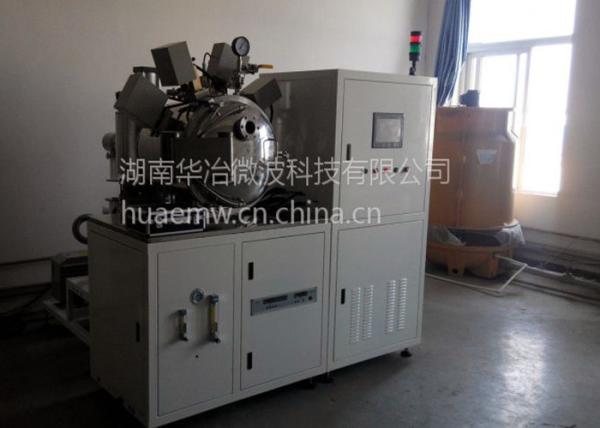

Smelting Furnace Vacuum Sintering Furnace 1500 Degrees Vacuum Drying Machine

Name: Smelting Furnace Vacuum Sintering Furnace 1500 Degrees Vacuum Drying Machine
Brand: Huaemw
Price: 1 USD

Brand Name : Huaemw

Model Number : HY-ZK4516

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Delivery Time : 1~12weeks

name : Microwave Sintering Furnace

Heating Source : Microwave

Working Temperature : 1550°C in atmosphere,1450°C in vacuum

Temperature Control Precision : ±0.1%

Static Ultimate Vacuum Degree : ≤10-3Pa

warranty : 12 Months

Contact Now

Vacuum Drying Machine With 3 / 1,5kW Magnetons 4,5kW Output Power 1500 Degrees

Product Features

HY-ZK4516 is capable of continuously maintaining static ultimate vacuum degree less than 10^-3Pa, which is especially suitable for synthesis process requiring high vacuum condition.

HY-ZK4516 is equipped with high precision water cooling machine with flow rate of 2m³/h and rated cooling capacity of 5.2KW.

Upon request, HY-ZK4516 can work continuously under 1550°C in atmosphere and 1450°C in vacuum.

HY-ZK4516 has 2 circuits to control in and out of the protective gas.
HY-ZK4516 uses magnetic fluid for rotary sealing.

Applications

HY-ZK4516 can be applied to thermal treatment of metal materials required for high vacuum and protective atmosphere.

HY-ZK4516 has a robust construction and offers rapid and highly consistent heating procress in controlled atmosphere, which is suitable or numerous heavy duty industrial and laboratory applications.

Technical Parameters

Parameters		HY-ZK4516
Power	Voltage	380±10V 50Hz three-phase
Power	Rated Power	13KW
Microwave System	Microwave Output Power	0.10~4.20KW continuously adjustable
	Microwave Frequency	2.45GHz
	Microwave Leakage Prevention	microwave leakage intensity <2mW/cm²
Thermal Insulation System	T_max	1600°C in atmosphere, 1500°C in vacuum
	Working Temperature	1550°C in atmosphere, 1450°C in vacuum
	Heating Space (D×H)	Φ150×120mm
Temperature Control System	Temperature Measurement Method	infrared thermometer
	Temperature Measurement Range	300~1800°C
	Temperature Control Precision	±0.1%
Control System	Auto, Manual and Isothermal Controlling Mode, PLC+Touch Screen	40 segments of programmable technical parameters, data storage and export, real-time curve data display, dynamic data display
