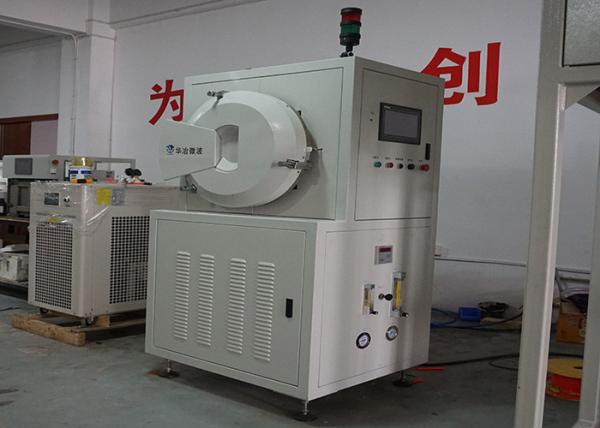

Alumina Ceramic Fiber Insulation Sintering Furnace Rotary Cylindrical Heating Zone

Name: Alumina Ceramic Fiber Insulation Sintering Furnace Rotary Cylindrical Heating Zone
Brand: Huaemw
Price: 1 USD

Brand Name : Huaemw

Model Number : HY-QS1516

Place of Origin : China

MOQ : 1 PCS

Price : Negotiable

Delivery Time : 1~12weeks

name : continuous sintering furnace

Heating Source : Microwave

Working Temperature : 0~1550℃

Temperature Measurement Method : infrared thermometer

Static Ultimate Vacuum Degree : ≤100Pa

Country Of Origin : China

Contact Now

Alumina Ceramic Fiber Insulation Sintering Furnace, Rotary Cylindrical Heating Zone

Product Features

HY-QS1516 is multifunctional furnaces ideal for microwave sintering.

HY-QS1516 can be controled with 40 segments of programmable technical parameters, data will be automatically storaged every minute and users can export data using usb device.

HY-QS1516 uses 2 circuits to control atmosphere and can handle oxidizing gas, inert gas, weak reducing gas etc.

Applications

HY-QS1516 sintering furnace can be applied to pyrolysis, synthesis, calcination as well as other thermal treatment process under various atmosphere conditions. Besides, the pre-vaccum pumping function can substantially save time for gas exchanging.

Technical Parameters

Parameters		HY-QS1516
Power	Voltage	380V±10V 50Hz
Power	Rated Power	5KW
MicrowaveSystem	Microwave Output Power	0.10~1.40KW continuously adjustable
	Microwave Frequency	2.45GHz
	Microwave Leakage Prevention	microwave leakage intensity <2mW/cm²
Thermal Insulation System	T_max	1600°C
	Working Temperature	0~1550°C
	Heating Space (D×H)	Φ110×70mm
Temperature Control System	Temperature Measurement Method	infrared thermometer
	Temperature Measurement Range	300~1800°C
	Temperature Control Precision	±0.1%
Control System	Auto, Manual and Isothermal Controlling Mode, PLC+Touch Screen	real-time curve data display, dynamic data display
Atmosphere System	Static Ultimate Vacuum Degree	≤100Pa
	2 Circuits to Control Atmosphere	capalble of oxidizing gas, inert gas, weak reducing gas etc.
	Rotary Sealing	magnetic fluid, 4~6rmp
Safety System	Magnetron Alarm	over temperature alarm
	Furnace Door Protection Alarm	furnace door shutdown sensor
	Cooling Water Flow Alarm	overflow alarm
Cooling System	High Precision Cooling-Water Machine	flow rate of 2m³/h, rated cooling capacity of 3.6KW
Overall Dimension	Furnace Body(L×W×H)	ca. 1150×850×800mm
